| Name: | Angle seat globe valve |
| Brand: | JHF |
| Production capacity: | 1000 sets per month |
| Min Order Qty: | 1 |
| OEM and ODM: | Yes |
| Application: | Industrial |
| Certificate: | ISO,CE, API, SIL |
| Payment term: | TT, LC, COD, D/P, Credit card |
| Delivery term: | FOB, CNF, DDU |
| Packing: | plywood case |
| HS code: | 8481804090 |
| FOB Port: | Ningbo, Shanghai |
| Guarantee time: | 12 months after shipment |
| Origin: | Wenzhou, China |
Product Description
Description :

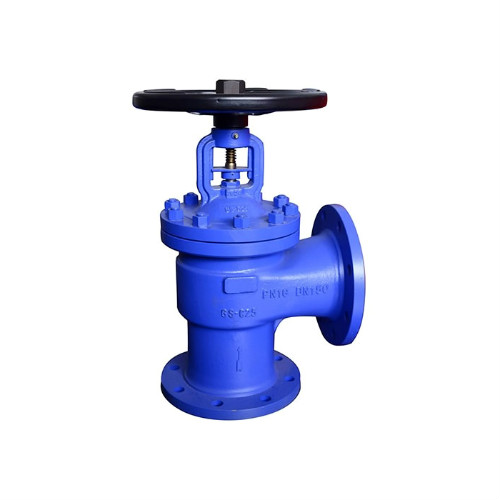

Angle seat globe valve is designed with the inlet end and outlet end forming a 90° angle. It can allow the medium change the direction with less pipe joints and elbows while it can greatly reduce flow resistance compared with standard straight-through pattern.
Features
1. Design standard: BS1873 & ASME B16.34
2. Conical valve disc
3. Sealing surface presents line sealing, ensuring reliable tightness.
4. Erosion-proof and corrosion-resisting
5. Full Stellite or Tungsten carbide overlaid seat surface
Product Range
Body material: carbon steel, stainless steel, alloy steel
Nominal diameter: 1/2"～24"（DN15~DN600）
Pressure range: Class150～class2500（PN10~PN420）
End connection： RF，RTJ，BW
Working temperature： -29℃～+560℃
Operation: handwheel, worm gear, electric actuator, pneumatic actuator, electro-hydraulic actuator , etc.
