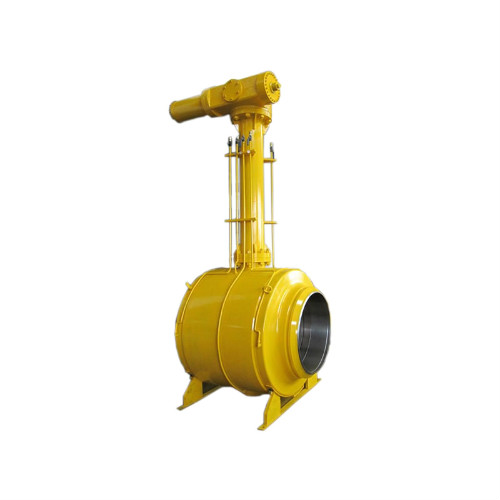

| Name: | Fully welded Ball Valve |
| Brand: | JHF |
| Production capacity: | 3000 sets per month |
| Min Order Qty: | 1 |
| OEM and ODM: | Yes |
| Application: | oil & gas |
| Certificate: | ISO,CE, API, SIL |
| Payment term: | TT, LC, COD, D/P, Credit card |
| Delivery term: | FOB, CNF, DDU |
| Packing: | plywood case |
| HS code: | 8481804090 |
| FOB Port: | Ningbo, Shanghai |
| Guarantee time: | 12 months after shipment |
| Origin: | Wenzhou, China |
Product Description
Description
The main material is composed of superior forging and welded as integral unit to provide a leakage free performance for a long time.
Design Features
1. Design standard acc.to ISO14313 and API6D;
2. Full bore design for pipeline services
3. Fire safe, anti-static and blowout proof stem design;
4. Emergency sealant injection;
5. Double Block and Bleed;
6. Cavity pressure self relief;
7. Low emission and live loading packing;
8. Double piston effective seat optional;
9. Optional extended stem for underground or cryogenic service.
Product Range
Body material: carbon steel, stainless steel, alloy steel, duplex steel
Nominal diameter:2"～60"（DN50~DN1500）
End Connection: RF, RTJ, BW
Pressure range: 150LB～2500LB（PN16~PN420）
Working temperature: -46℃～+200℃
Operation: Lever, wrench, gear, electric, pneumatic, hydraulic , electro-hydraulic actuator,etc
