cryogenic ball valves, 3-piece, split body, extended stem, F304, PEEK, CL1500, 6, ISO17929, hub end

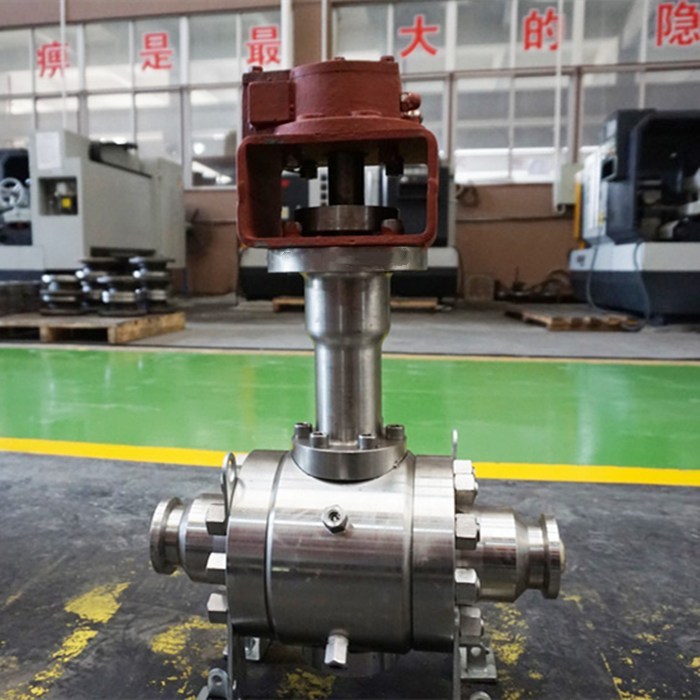

We finished assembly of cryogenic ball valves, 3-piece construction, split body, side entry, extended stem, body forged steel F304, ball F304, seat PEEK, CL1500, 6'', API 6D, hub end, gear operated.



Product Description



Product name

Ball valves

Type

Trunnion mounted

Working temp

-80  to 180

Working pressure

21.5 Mpa

Body material

ASTM A182 F304

Trim material

F304

Seat material

PEEK

Pressure rating

CL1500

Size

6 inch

Certificate

API, CE, EAC, SIL

Design standard

API 6D

Face to face standard

ASME B16.10

Flange standard

ASME B16.5

Application

LNG

Operation

Gear operation
