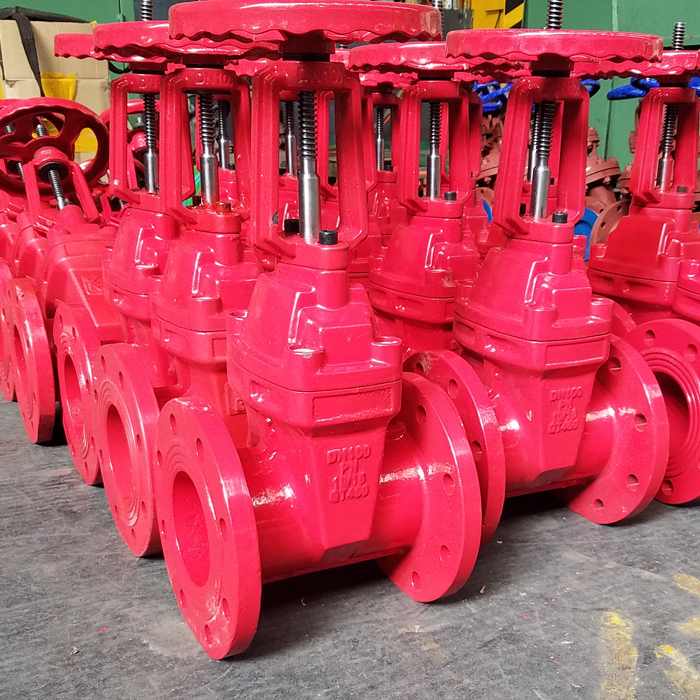

Fire fighting gate valves rising stem metal seat ductile iron DN100 PN10 handwheel from Chinese factory
We are finishing hydro pressure test of Fire fighting gate valves, rising stem, double flange, ductile iron, DN100, PN1,0 metal seat, handwheel made from Chinese factory
If you are interested in more information, freely contact us via sales@jhflow.com
Product Description
Product name | Gate valve |
Type | OS&Y, bolted bonnet |
Working temp | -26 ℃ to 120 ℃ |
Media | water |
Working pressure | 0.2 Mpa |
Body material | Ductile iron GGG450 |
Trim material | SS410 |
Seat material | SS410 |
Pressure rating | PN10 |
Size | DN100 |
End | Double flanged |
Certificate | API, CE, EAC, SIL, ASME |
Design standard | ASME B16.34 |
Face to face standard | ISO 5752 |
flange standard | EN1092-1 |
Test standard | API598 |
Application | Water supply |
Operation | handwheel |
Company Profile:
Jinghua Flow Group is deemed as one of the most renowned manufacturers and suppliers of industrial parts, such as valves, actuators, fittings, flanges, pipes, etc.
We take pride in in-depth integration of mature Chinese industrial supply chain and competent manufacturing expertise to serve our respectful customers at moderate cost. Our extensive know-how of application in harsh environment is proven through continual contact with our customers and end user. Comprehensive quality control is profoundly established to eliminate any possibility of functional and visual defect.
Corporation Name | Jinghua Flow Group Limited |
Brands | JHF valves, CFC actuators, YHV SS valves, JY SS Fittings and flanges |
No of Employees | Over 200 people |
Year of establishment | Since 2006 |
Turnover | Around 10 million USD |
Factory size | 11000 M3 |
Products | valves, actuators, fittings, flanges, pipes, etc |
Certificate | ISO9001, ISO18001, ISO14001, API6D,API607, CE, SIL, EAC |
Application | Oil & gas, power plant, chemical, water treatment, pulp & paper, sugar making, mining, etc |
