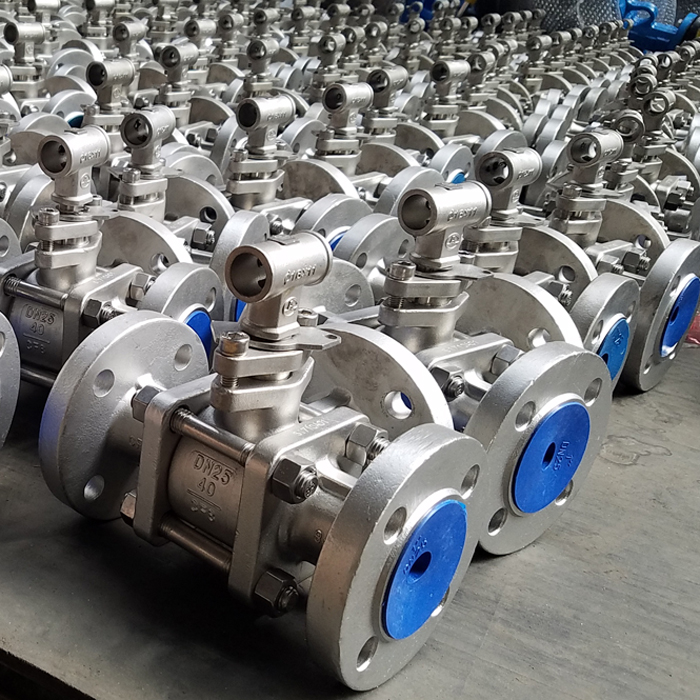

Three way ball valve flanged RF T wrench operation DN25 PN40 from Chinese factory
We are preparing the shipment of Three way ball valve flanged RF, floating type, T wrench operation, CF8 body, DN25 PN40, full bore, fire safe design, made from Chinese factory. If you are interested in more information, freely contact us via sales@jhflow.com
Product Description
Product name | Ball valve |
Type | Floating type, bolted bonnet |
Working temp | 0 ℃ to 120 ℃ |
Media | water |
Working pressure | 2.3 Mpa |
Body material | ASTM A351 CF8 |
Trim material | SS304 |
Seat material | Teflon |
Pressure rating | PN40 |
Size | DN25 |
End | Double flanged RF |
Certificate | API, CE, EAC, SIL, ASME |
Design standard | ASME B16.34 |
Face to face standard | ISO 5752 |
flange standard | EN1092-1 |
Test standard | API598 |
Application | Water supply |
Operation | T wrench operation |
Company Profile:
Jinghua Flow Group is deemed as one of the most renowned manufacturers and suppliers of industrial parts, such as valves, actuators, fittings, flanges, pipes, etc.
We take pride in in-depth integration of mature Chinese industrial supply chain and competent manufacturing expertise to serve our respectful customers at moderate cost. Our extensive know-how of application in harsh environment is proven through continual contact with our customers and end user. Comprehensive quality control is profoundly established to eliminate any possibility of functional and visual defect.
Corporation Name | Jinghua Flow Group Limited |
Brands | JHF valves, CFC actuators, YHV SS valves, JY SS Fittings and flanges |
No of Employees | Over 200 people |
Year of establishment | Since 2006 |
Turnover | Around 10 million USD |
Factory size | 11000 M3 |
Products | valves, actuators, fittings, flanges, pipes, etc |
Certificate | ISO9001, ISO18001, ISO14001, API6D,API607, CE, SIL, EAC |
Application | Oil & gas, power plant, chemical, water treatment, pulp & paper, sugar making, mining, etc |
