Name:electric actuators
Brand:CFC
Production capacity:1000 sets per month
Min Order Qty:1
OEM and ODM:Yes
Application:General
Certificate:ISO,CE, ATEX, SIL
Payment term:TT, LC, COD, D/P, Credit card
Delivery term:FOB, CNF, DDU
Packing:plywood case
HS code:8537109090
FOB Port:Ningbo, Shanghai
Guarantee time:12 months after shipment
Origin:Wenzhou, China
Product Description

Introduction

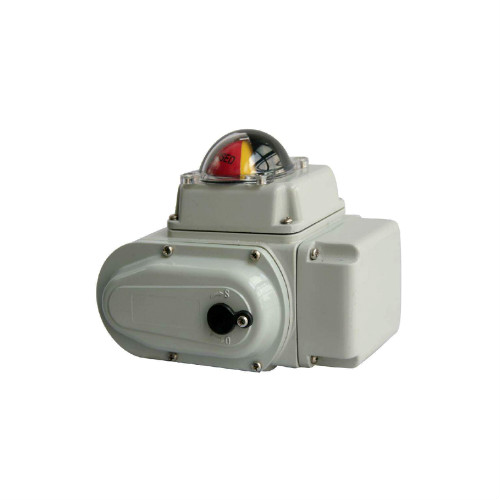

Our electric actuator is typically configured to control part-turn ball valve and butterfly valves for water treatment, power plant, chemical and petroleum industries at competitive cost



Features

1. Light weight and compact structure

2. Waterproof and explosion proof according IP65

3. Robust aluminum housing with Polyester powder coated

4. Precision machined parts

5. Local visible position indicator

6. Mechanical travel stop and overload protection

7. On-off and control types available

8. Manual handwheel override option

9. Intelligent LCD and non-intrusive options




Specifications

Torque 30nm~2000nm0-180°, 0-270°,

Open/Close Time: 5S-40S

Working Temp.: -30º C~+65º C

Manual override: wrench or handwheel

Stroke: 0-90°, 0-110°, 0-145°,

Actuator Body: Aluminium Alloy

Protection Class: IP65, IP67, IP68

Voltage: 24V DC, 110VAC, 220V AC, 380V AC

Type: On-off, Regulating, Smart

Available Valve Size: Ball Valve (DN15-DN200); Butterfly Valve (DN25-DN500)
